バージョン 7.0 で追加.

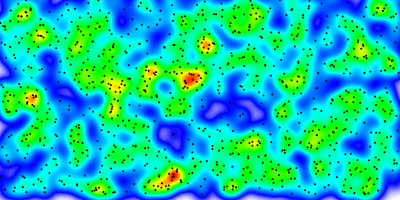

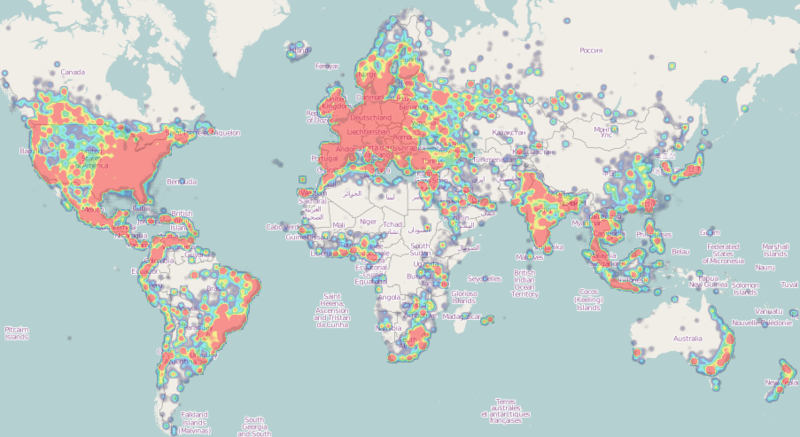

A heatmap is a popular method for representing sparse data on a regular raster grid, where each pixel on the grid is influenced inversely to its distance to each sample of the sparse dataset. Heatmaps are usually represented with a color-ramp where the hue encodes the density of the data sample, optionally along with the intensity of an attribute. The "heatmap" term itself is used with varying meanings. We will be using it to reference Kernel Density Estimation maps.
First, you must set the LAYER CONNECTIONTYPE parameter to KERNELDENSITY. The heatmap vector-to-raster takes the following parameters:
CONNECTION "layername" : reference to the NAME or GROUP of a LAYER to use as an input vector datasource. NAME takes precedence, followed by the first layer from GROUP who's minscaledenom/maxscaledenom matches the current map scale. The referenced layer should be a TYPE POINT layer. Other layer types will result in one sample being added for each vertex of the input features.

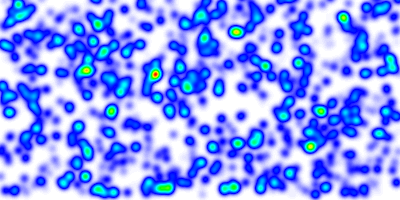

PROCESSING "KERNELDENSITY_RADIUS=10" : radius in pixels of the gaussian filter to apply to the bitmap array once all features have been accumulated. Higher values result in increased cpu time needed to compute the filtered data.
PROCESSING "KERNELDENSITY_COMPUTE_BORDERS=ON|OFF" : A kernel of radius "r" cannot be applied to "r" pixels along the borders of the image. The default is to extend the search rectangle of the input datasource to include features "r" pixels outside of the current map extent so that the computed heatmap extends to the full extent of the resulting image. This can be deactivated when tiling if the tiling software applies a metabuffer of "r" pixels to its requests, to avoid the performance overhead of computing this extra information.

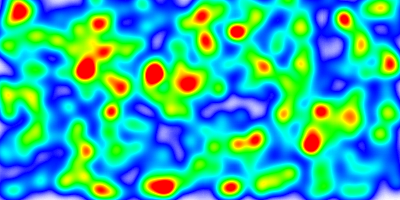

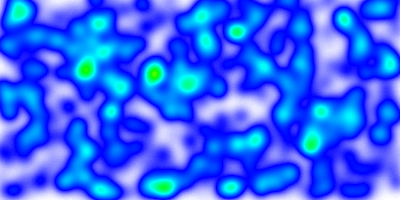

PROCESSING "KERNELDENSITY_NORMALIZATION=AUTO|numeric" : If set to "AUTO", the created raster band will be scaled such that its intensities range from 0 to 255, in order to fully span the configured color ramp. Such behavior may not be desirable (typically for tiling) as the resulting intensity of a pixel at a given location will vary depending on the extent of the current map request. If set to a numeric value, the samples will be multiplied by the given value. It is up to the user to determine which scaling value to use to make the resulting pixels span the full 0-255 range; determining that value is mostly a process of trial and error. Pixels that fall outside the 0-255 range will be clipped to 0 or 255.
By default, each feature is assigned a weight of 1.0, and the resulting heatmap will represent the spatial density of the vector features. If this is not the desired behavior, different weights can be applied on a feature by feature basis by using regular CLASS / STYLE syntax on the source vector layer. The weight used will be read from the SIZE value of the matched STYLE. Standard EXPRESSION and MINSCALEDENOM / MAXSCALEDENOM apply; if a feature results in no matching CLASS and/or STYLE, it is ignored and discarded from the resulting heatmap. The examples at the end give some examples as to how this can be achieved.
The features added in MS RFC 6: Color Range Mapping of Continuous Feature Values for vector features, and since extended to support raster layers, will be extended in order to support more complex color ramps. Note that these additions will apply to all raster classifications, not only for heatmap layers.
Support for multiple stops : The actual support for ranges for raster layers is limited to a single COLORRANGE / DATARANGE. We will support multiple ranges in order to allow multiple color stops, and will also account for optional alpha values. The following example creates a ramp ranging from fully transparent blue to blue for values between 0 and 32, then blue to red for values ranging from 32 to 255.
CLASS STYLE COLORRANGE "#0000ff00" "#0000ffff" DATARANGE 0 32 END # STYLE STYLE COLORRANGE "#0000ffff" "#ff0000ff" DATARANGE 32 255 END # STYLE END # CLASS
A single style block will be used for each pixel value. It is up to the user to ensure that the supplied DATARANGE`s span 0 to 255 with no overlap, and that the chosen `COLORRANGE stops are continuous from one stop to the next.

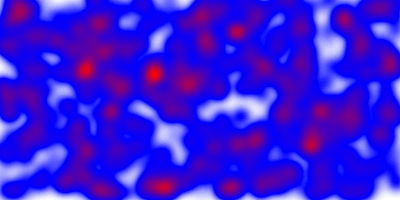

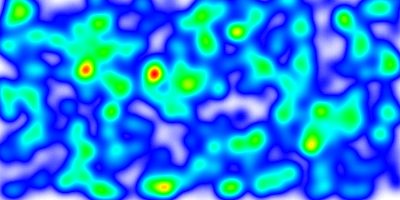

PROCESSING RANGE_COLORSPACE=RGB|HSL: The current RANGE support interpolates colors between stops in RGB space, which usually results in washed out colors. The interpolation can be done in HSL space which usually results in wanted output for heatmaps.
MAP SIZE 1000 500 EXTENT -180 -90 180 90 NAME "test heat" IMAGETYPE "png" WEB METADATA "ows_srs" "epsg:4326 epsg:3857 epsg:900913" "ows_enable_request" "*" END # METADATA END # WEB PROJECTION "+init=epsg:4326" END # PROJECTION LAYER NAME "heatmap" TYPE raster CONNECTIONTYPE kerneldensity CONNECTION "points" STATUS on PROCESSING "RANGE_COLORSPACE=HSL" PROCESSING "KERNELDENSITY_RADIUS=20" PROCESSING "KERNELDENSITY_COMPUTE_BORDERS=ON" PROCESSING "KERNELDENSITY_NORMALIZATION=AUTO" OFFSITE 0 0 0 CLASS STYLE COLORRANGE "#0000ff00" "#0000ffff" DATARANGE 0 32 END # STYLE STYLE COLORRANGE "#0000ffff" "#ff0000ff" DATARANGE 32 255 END # STYLE END # CLASS END # LAYER LAYER NAME "points" STATUS on TYPE POINT DATA "pnts.shp" END # LAYER END # MAPFILE
The kernel radius can be set dynamically depending on the scale. Note that any other PROCESSING key can be updated by the same method. In the following example, the kernel radius will be 50 pixels for scales 1/1 to 1/25000000, and 10 pixels for scales 1/25000000 and smaller:
LAYER NAME "heatmap" ... PROCESSING "KERNELDENSITY_RADIUS=%radius%" SCALETOKEN NAME "%radius%" VALUES "0" "50" "25000000" "10" END # VALUES END # SCALETOKEN ... END # LAYER
Different weights can be applied by using CLASS->`STYLE`->`SIZE` syntax on the source vector layer to apply a non default weight to each sample:
Weight read from a feature attribute:
LAYER NAME "points" STATUS on TYPE POINT DATA "pnts.shp" CLASS STYLE SIZE [attribute] END # STYLE END # CLASS END # LAYER
Weight read from a non numeric attribute:
LAYER NAME "points" STATUS on TYPE point DATA "pnts.shp" CLASSITEM "risk" CLASS EXPRESSION "high" STYLE SIZE 5 END # STYLE END # CLASS CLASS EXPRESSION "medium" STYLE SIZE 3 END # STYLE END # CLASS CLASS EXPRESSION "low" STYLE SIZE 1 END # STYLE END # CLASS END # LAYER
